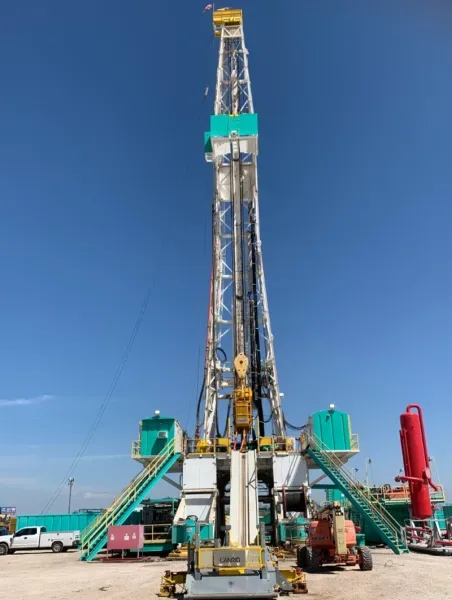

1,000 Hp, National Oilwell 760-E Drilling Rig
Key Details
| Title | 1,000 Hp, National Oilwell 760-E Drilling Rig |
|---|---|
| Equipment ID | EQUIP-76161 |
| Manufacturer | National Oilwell |
| Part Number | 760-E |
| Equipment Type | 1000 HP SCR/VFD |
| Condition | Used |
| Status | Available |
| Location | Oklahoma City |
| Date Posted | 2026-01-21 |
| Year of Manufacture | 2015 |
Specifications
Product Details

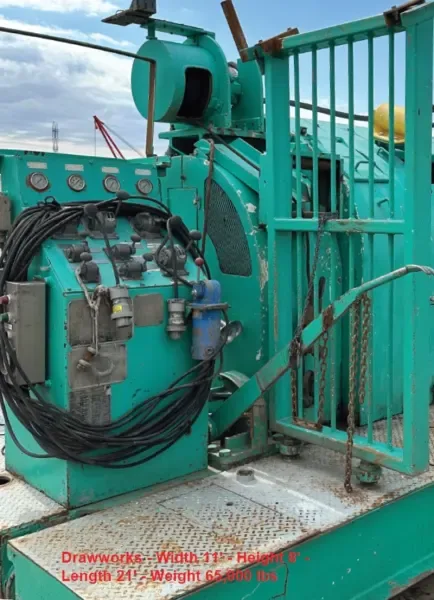

| DRAWWORKS | 1,000 Hp, National Oilwell 760-E with Baylor 6032 Auxiliary Electric Brake p/b (2) High Torque GE 752 Electric Motors |
|---|---|
| MOBILITY | 90’ Walking system with Wireless Control and Redundant HPU |

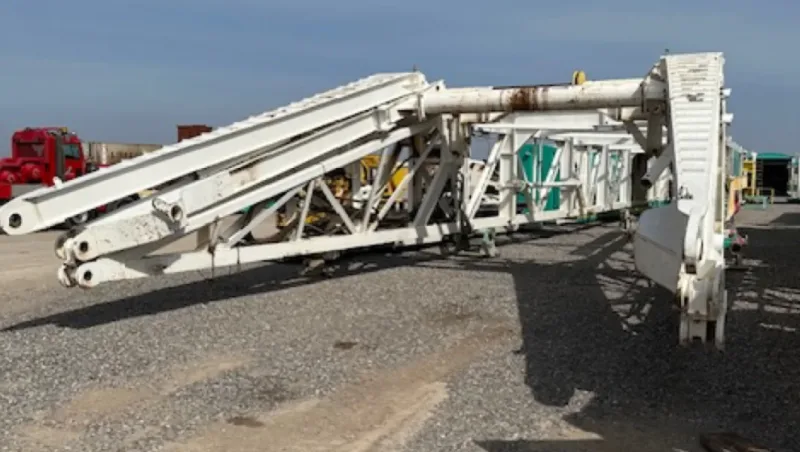

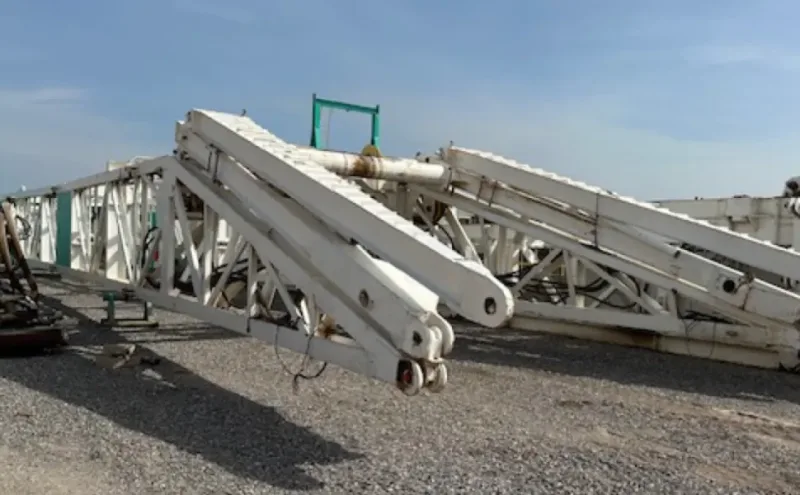

| MAST | DSI 142 FT – 650,000 LB Static Hook Load on 10 Lines |

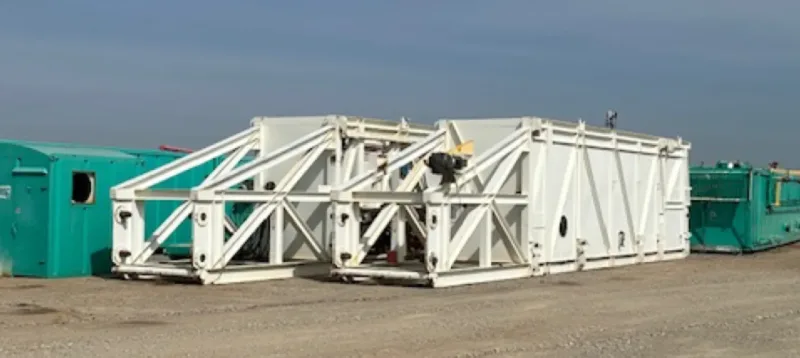

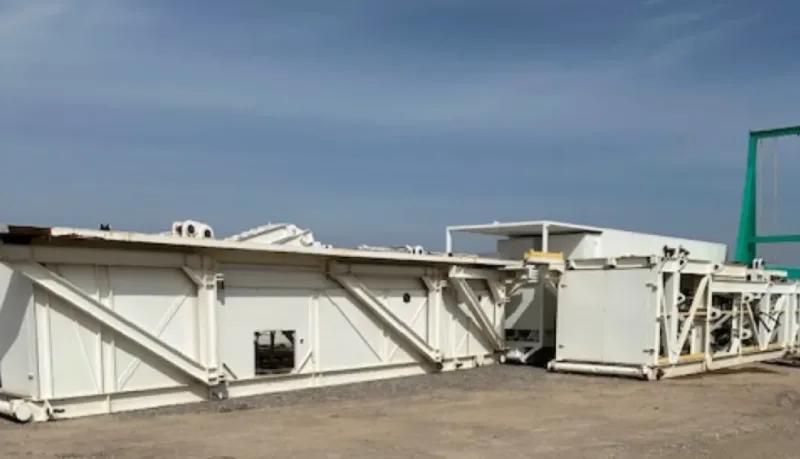

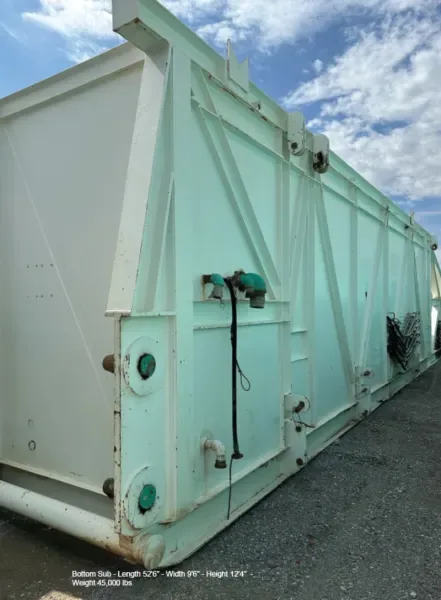

| SUBSTRUCTURE | DSI 21.5’ Floor Height, (1) 10’ Box and .5’ Rigmat |

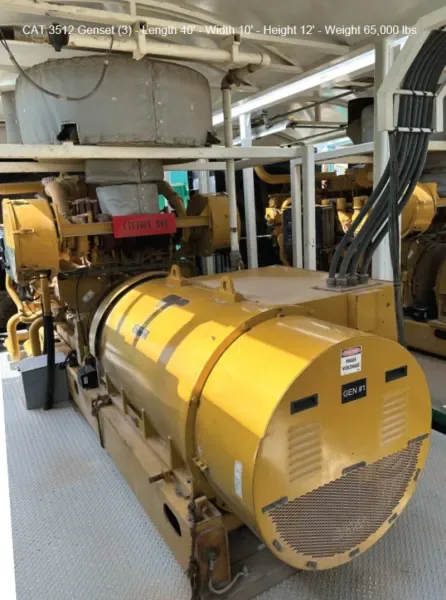

| GENERATORS | (3) Caterpillar 3512B Diesel Engines w/Coolers and 1204 KW Generators |

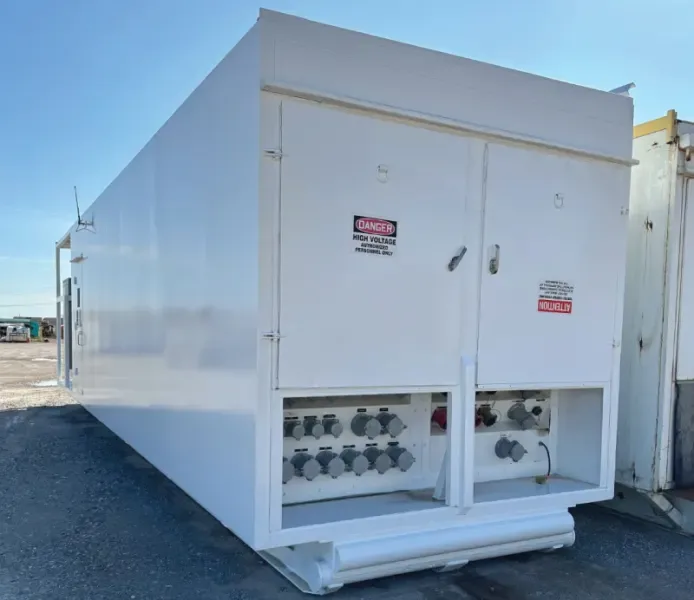

| CONTROL HOUSE | 1600A 3x4 Bay Omron with Dynamic Braking and PPLC Failover System |

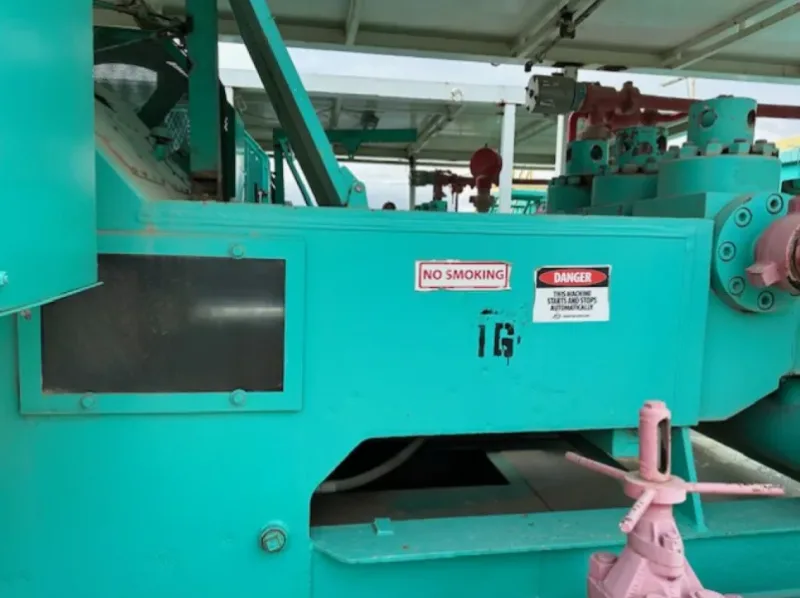

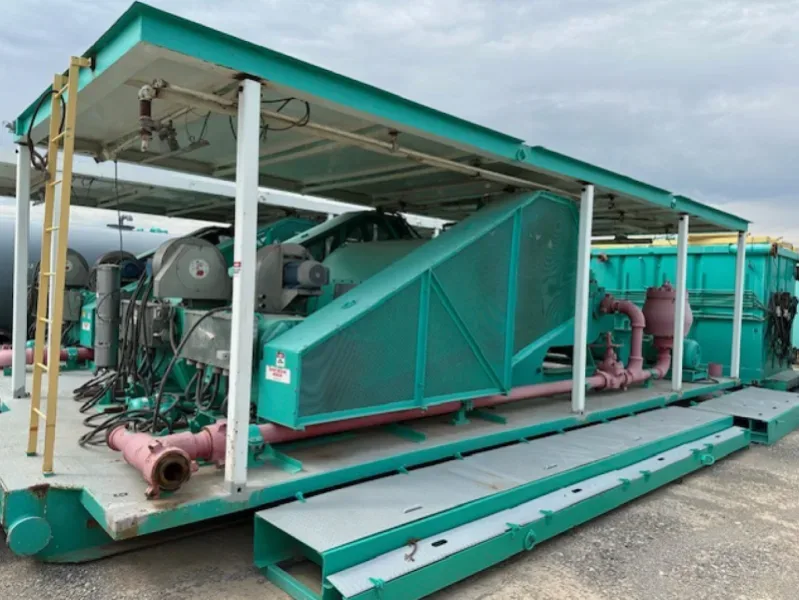

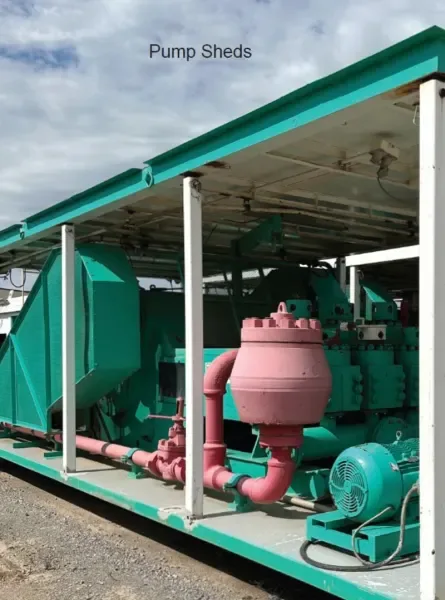

| MUD PUMPS | (2) 12P-160 National Mud Pumps with 7,500 PSI Fluid System |
| TOP DRIVE | Canrig 1250AC 275 Ton Top Drive with 7,500 PSI Fluid System and Rig Floor Mounted TDSU |
| CATWALK | Canrig PC-3000 Hydraulic Catwalk with Walking Package, Hydraulic V-Door, Wireless Control |
| HANDLING TOOL | National ST-80C |
| ROTARY TABLE | National 275, 27.5” Table |
| BOP | 13-5/8” 5,000 PSI Double Ram with 13-5/8” 5,000 PSI Annular |
| MUD SYSTEM | 1,100 BBL with 6x8 Mixing Pumps and 10 HP Agitators, Desander, Desilter, 48” Mud/Gas Separator |

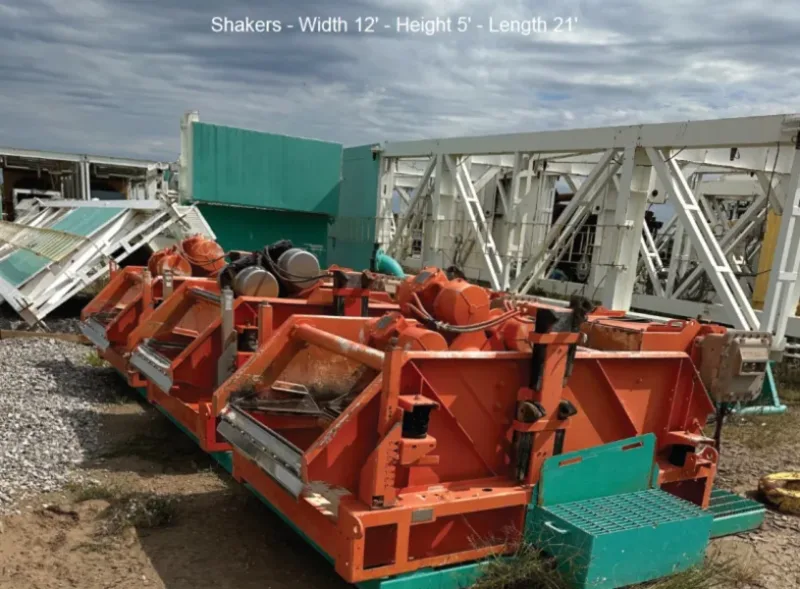

| SHALE SHAKERS | (3) MI SWACO Linear Motion |
| CHOKE MANIFOLD | 3” 5,000 PSI Skid Mounted |
| FULE TANK | 12.000 Gallon Dual Wall Fuel Tank w/integrated redundant fuel pumps |
| WATER TANK | 500 BBL |

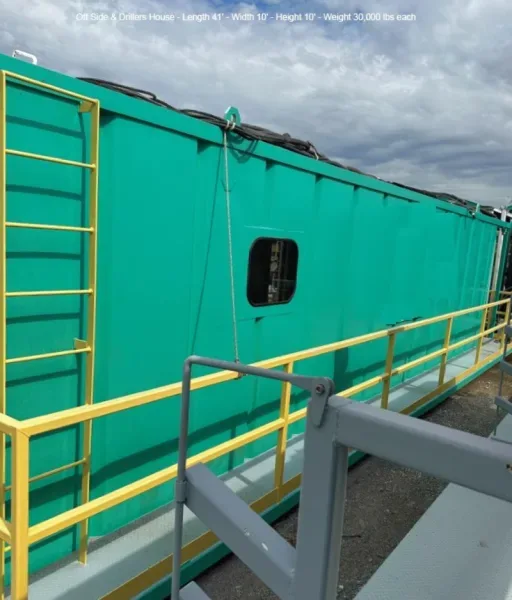

| DOG HOUSE | 10’ x 8’ x 45’ DS, 10’ x 8’ x 22’ ODS |
| TRAVELING BLOCK | National 350 Ton with 50” Sheaves for 1-1/4” Drilling Line |
| MISCELLANEOUS | Parts House, Pipe Racks, Misc. Handling Tools |
| LIGHTING SYSTEM | 100% LED Class I DIV I, Class I DIV II Area, Spot and Flood Fixtures |
| POWER UNIT | Centralized HPU with Redundant Motors/Pumps and Temp/Level Protection |
